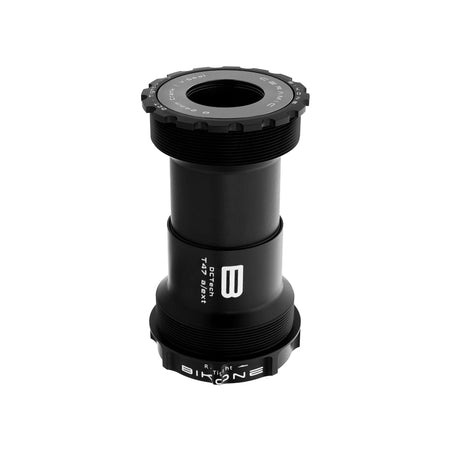

DCTech T47a Ceramic for Shimano

T47 Asymmetric Ceramic bottom bracket for Shimano cranks.

Assambly specs

• • Crankset diameter: 24 mm (Shimano).
  • Frame width: 68-73 mm (This model is available for both mountain and road bikes).
  • Frame diameter: T47.
  • For Threaded frames.

Weight

113 grams

Compatible tools

Parktool BBT-47-16 or similar: Ø52mm outside and Ø48.2mm inside. 16 pins.

Characteristics

• • Dual Cup Technology. Two aluminium cups that perfectly align bearings on both sides, creating a solid center joint that eliminates any noise or movements issues. Find out more about our technology here.
  • This bottom bracket uses Hybrid Ceramic Bearings (ABEC5 /P5 - 2RS).
  • The cups of our bottom brackets are made from 7075 Aluminium, a high-strenght aerospace-grade aluminium on which we apply a T6 treatment. That makes the material harder and more durable, ensuring that our cups mantain top performance over time.
  • Fully sealed. Axial seals on bearings and fully sealed on all surfaces.
  • If you are unsure about the compatibility between your bike and this bottom bracket, please contact customer.support@bikone.com

Lifetime warranty for the cups.

3 year warranty for the bearings.

Check out our warranty terms and conditions here.

Please, carefully follow the provided use, installation and maintenance instructions on the following link.
