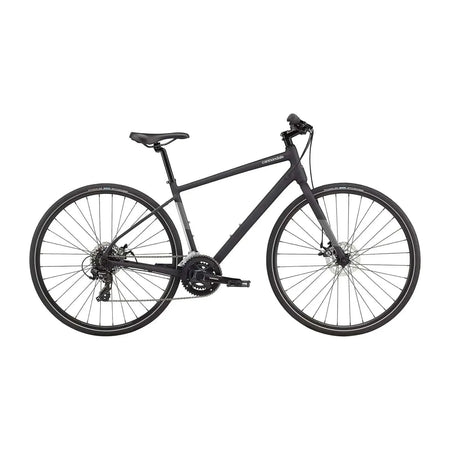

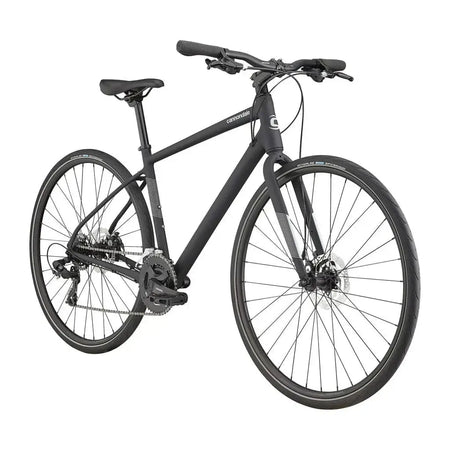

Cannondale Quick 5

Where it thrives

In town, leisurely rides, on crowded streets

What it's built for

Agility, visibility, comfort

Highlights

• Lightweight aluminum frame w/ 360° reflective accents
• Shimano Tourney TX 14-speed drivetrain w/ disc brakes
• Integrated connectivity with Cannondale App



  Technical Specifications

  Specs

  Details

  • Platform

    Quick
  • Model Name

    Quick 5
  • Model Code

    C31501M


  Frameset

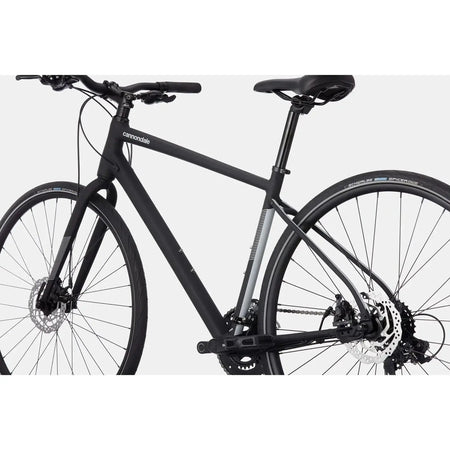

  • Frame

    SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
  • Fork

    Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts
  • Headset

    Integrated, 1-1/4"-1-1/8"


  Drivetrain

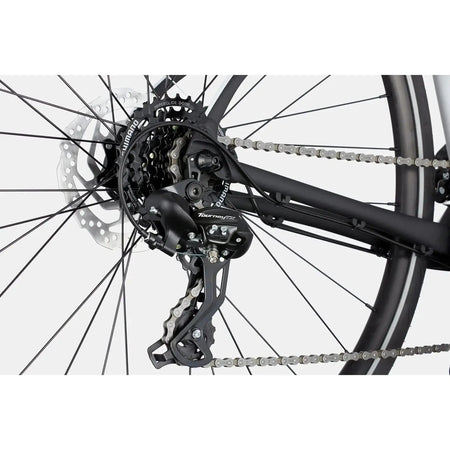

  • Rear Derailleur

    Shimano Tourney
  • Front Derailleur

    Shimano Tourney, 31.8mm clamp
  • Shifters

    Shimano M315 Rapidfire Plus, 7-speed
  • Chain

    KMC Z7, 7-speed
  • Crank

    Shimano Tourney, 46/30
  • Rear Cogs

    Shimano HG200, 12-32, 7-speed
  • Bottom Bracket

    Cartridge, square taper


  Brakes

  • Brakes

    Promax mechanical disc, 160/160mm rotors
  • Brake Levers

    Promax BL42


  Wheels

  • Front Hub

    Shimano, Alloy, Sealed, QR
  • Rear Hub

    Shimano, Alloy, Sealed, QR
  • Brake Type

    Disc
  • Rims

    Cannondale Disc, double wall w/eyelet, 32h
  • Spokes

    Stainless Steel, 14g
  • Tire Size

    35
  • Wheel Size

    700c
  • Tires

    Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
  • Front Tire

    Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip
  • Rear Tire

    Schwalbe Spicer PLUS PunctureGuard, 700x35c, reflective strip


  Components

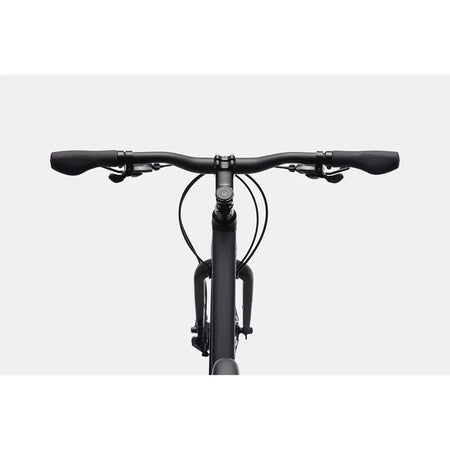

  • Handlebar

    6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm
  • Stem

    6061 Alloy, 31.8, 8°
  • Grips

    Cannondale Ergo Fitness

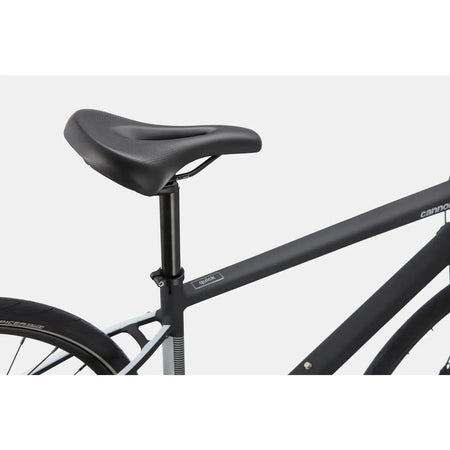

  • Saddle

    Cannondale Fitness Ergo Double Density
  • Seatpost

    6061 Alloy, 27.2x350mm


  Connectivity

  • Wheel Sensor

    Cannondale Wheel Sensor
